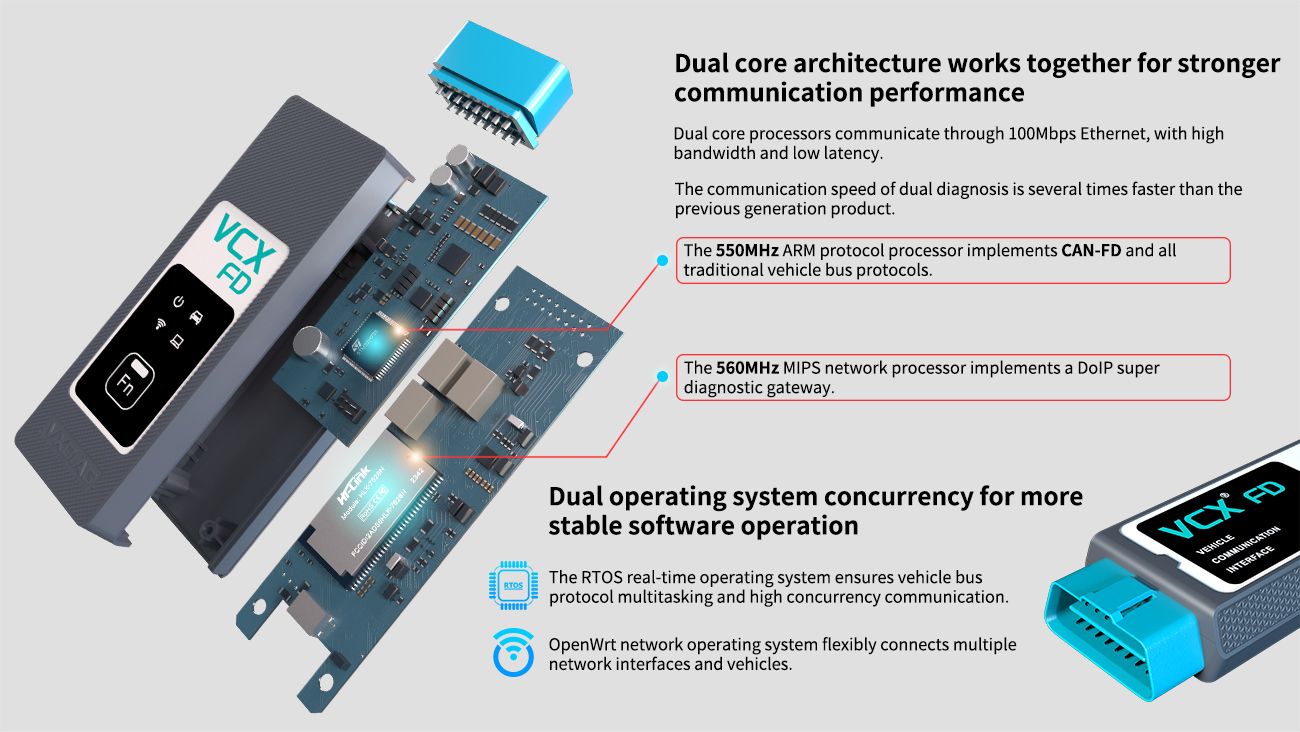

- Network Processor
32bit 560MHz MIPS
32MB FLASH
128MB DDR
32MB FLASH
128MB DDR

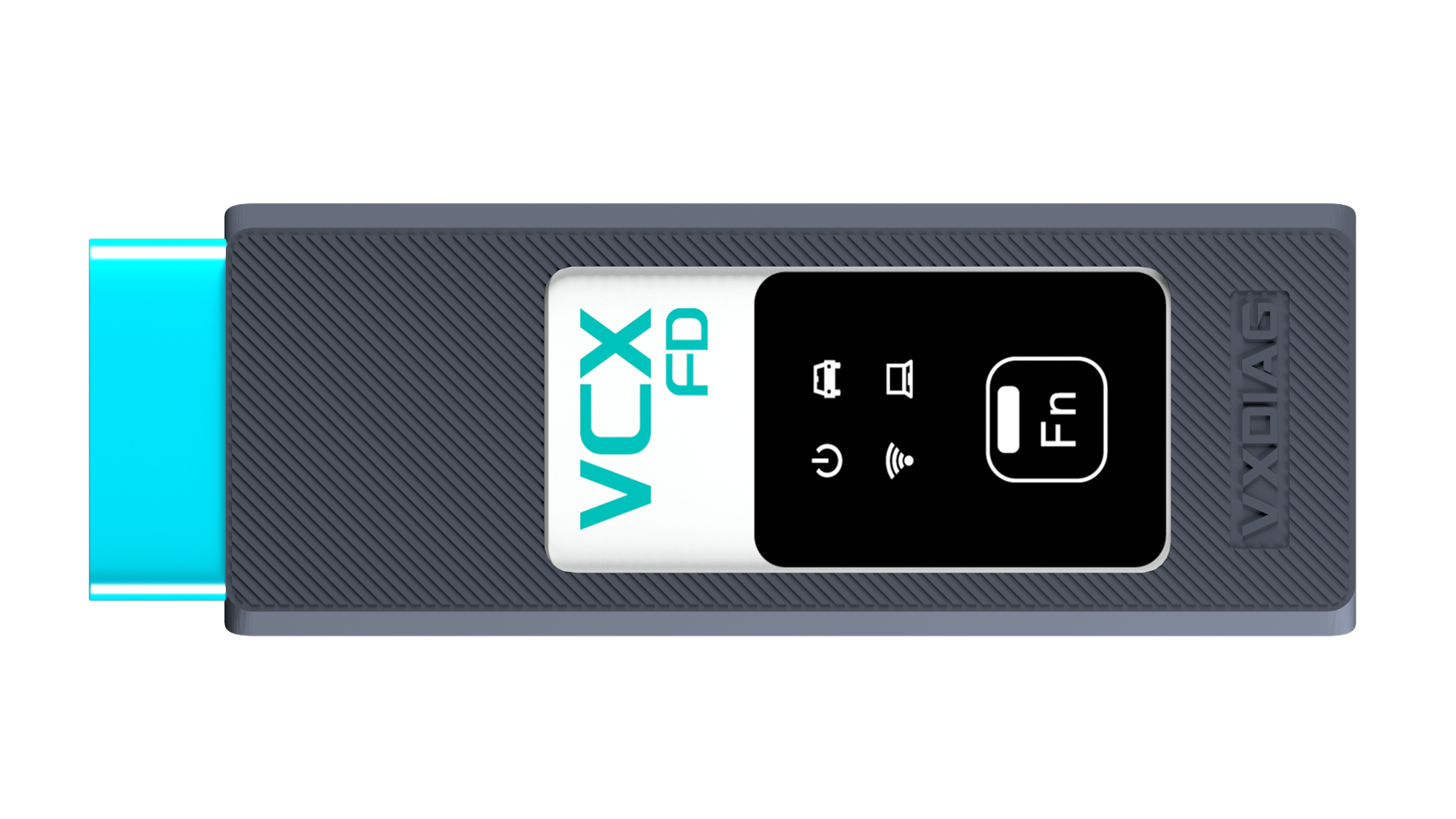

VCX FD
Overview
VCX FD
Next generation intelligent vehicle diagnostic interface

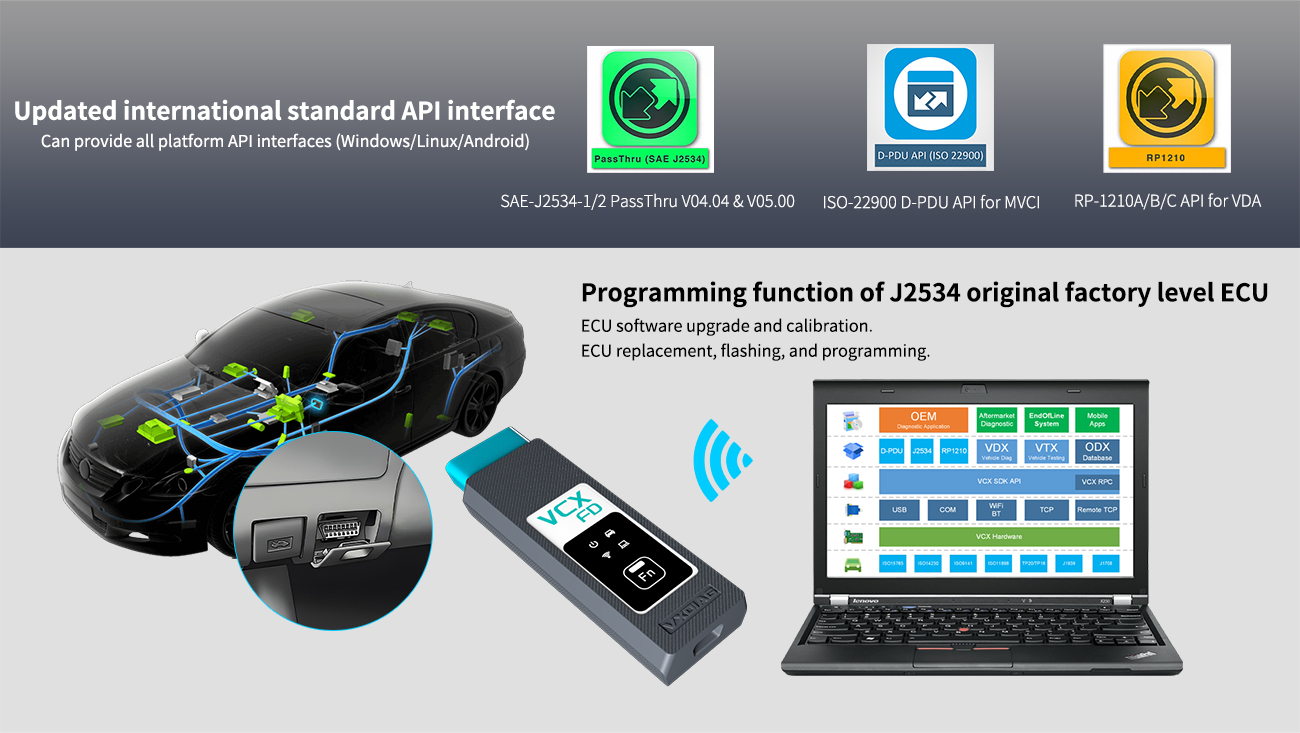

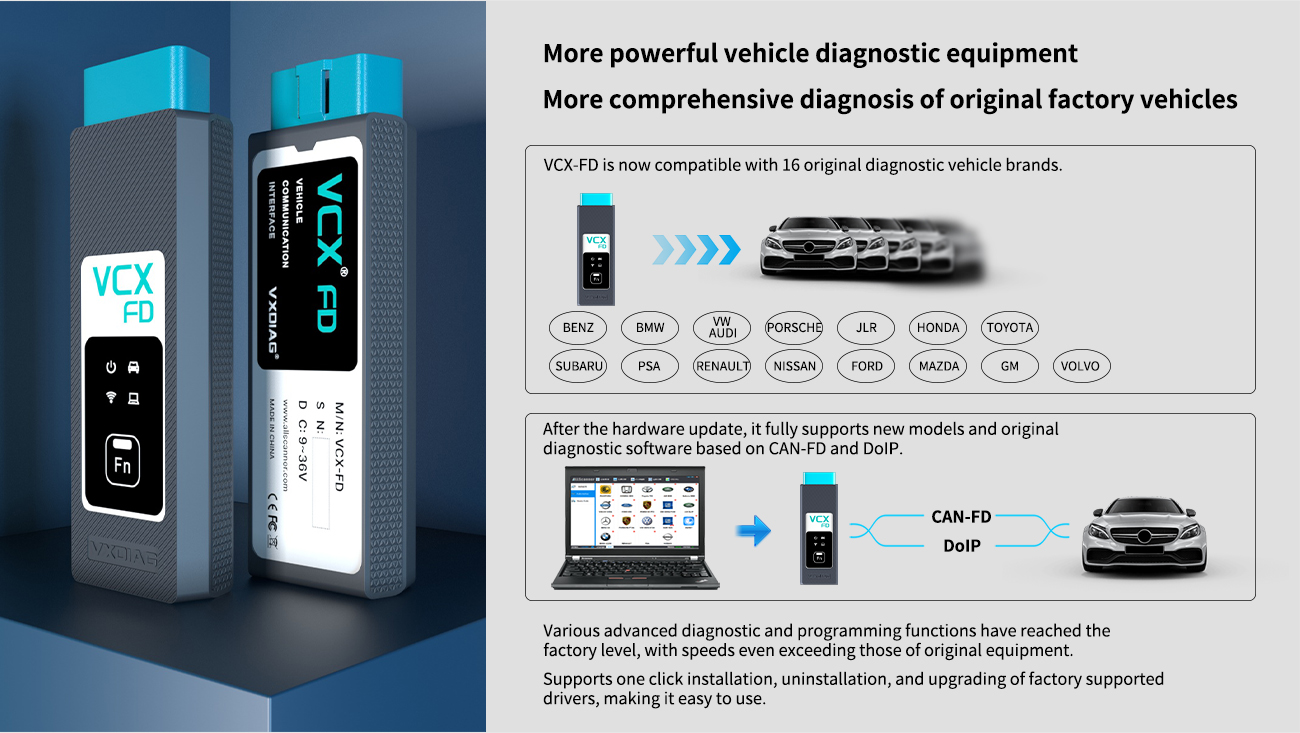

VCX-FD is an intelligent vehicle diagnostic interface designed by Autocar, representing the next generation of diagnostic technology. The product adopts a newly upgraded dual core high-speed processor, which fully supports multi-channel CAN-FD/DoIP and traditional diagnostic protocols, and is compatible with more original diagnostic software. VCX-FD also supports local and super remote dual-mode diagnosis, providing users with an excellent diagnostic experience.
Tech Specs
Hardware specifications
- Protocol processor
32bit 550MHz ARM
1MB FLASH
- Diagnostic interface (vehicle)
SAE-J1962 standard OBD-II diagnostic interface
- DoIP interface (vehicle)
ISO-13400-4 Option1/2 Ethernet

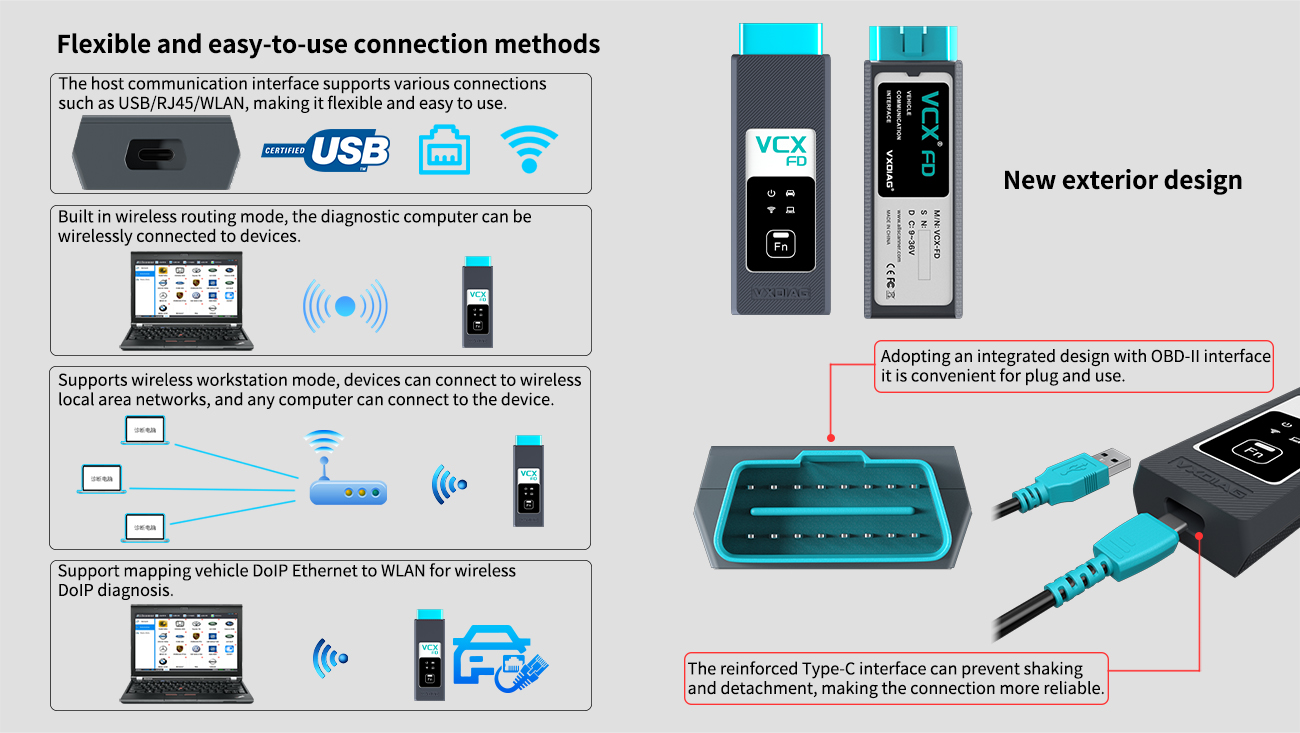

- Wired interface (PC)
USB TYPE-C
- Network Interface (PC)
USB TYPE-C to RJ-45 Ethernet
- Wireless interface (PC)
WLAN 802.11 b/g/n wireless network
- KEY

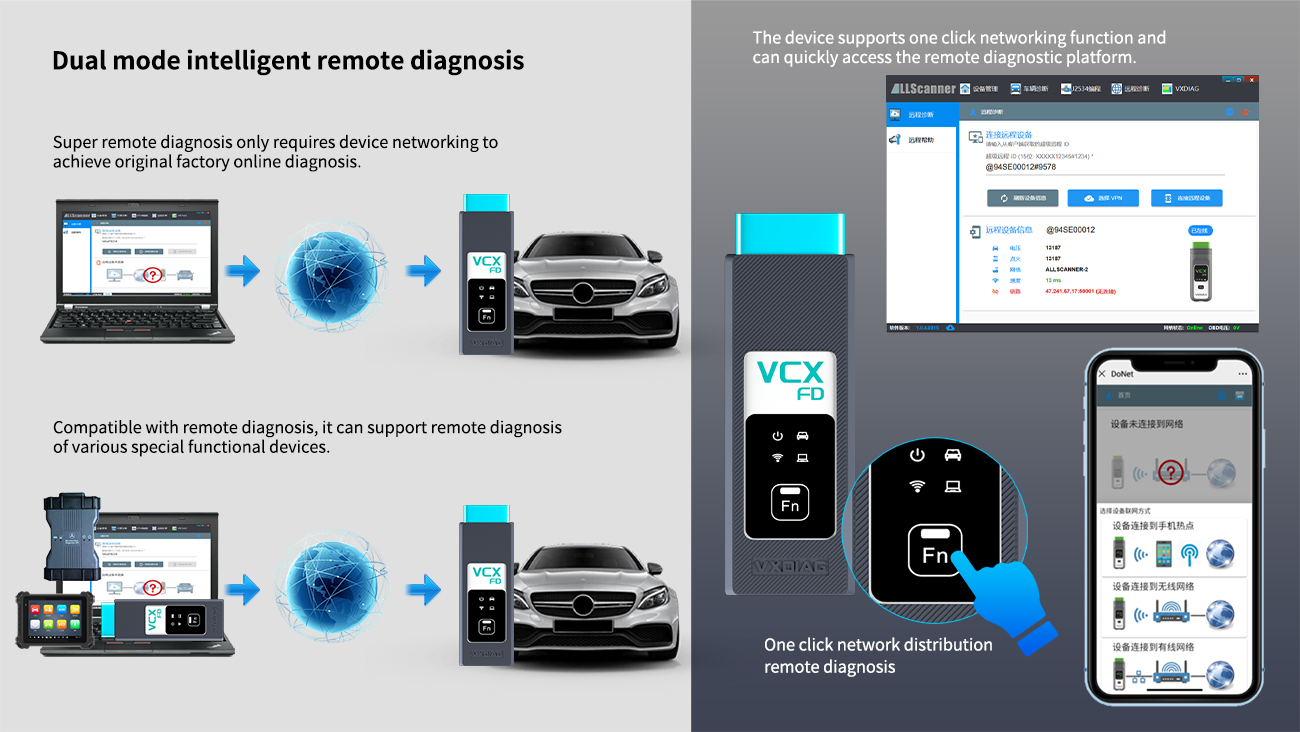

Fn function key: Press and hold for 3 seconds to enter super remote mode
- LED Lights
Power, wireless, communication, vehicle, and remote.
- Power
Vehicle power supply: DC 9V -36V (compatible with 12V and 24V)
- Power consumption
2W
- Size
L x W x H = 138 x 47 x 21 (mm)
- Weight
Equipment weight: 0.3Kg
Packaging weight: 0.8Kg
Packaging weight: 0.8Kg
- Shell
Reinforced plastic shell
- Operation temperature
-20～+70 °C
- Storage temperature
-40～+85 °C
- Standard certification
EU:CE and US:FCC
Indicator lights
Describe
Color
Describe
- Equipment working status
Red
Breathing flickers when starting normally
Flash quickly during hardware failure
Flash quickly during hardware failure
- Wireless network status
Blue
Wireless network status flashing rapidly during wireless communication
Slow flashing during wireless network distribution
Slow flashing during wireless network distribution
- Host communication status
Two Colors
Blue flashing during USB communication
Green flashing during LAN communication
Green flashing during LAN communication
- Vehicle communication status
Two Colors
Blue flashing during traditional protocol
Green flashing during DoIP protocol
Green flashing during DoIP protocol
- Remote diagnostic status
Green
Slow flashing after remote connection
Quick flashing during remote diagnosis
Quick flashing during remote diagnosis

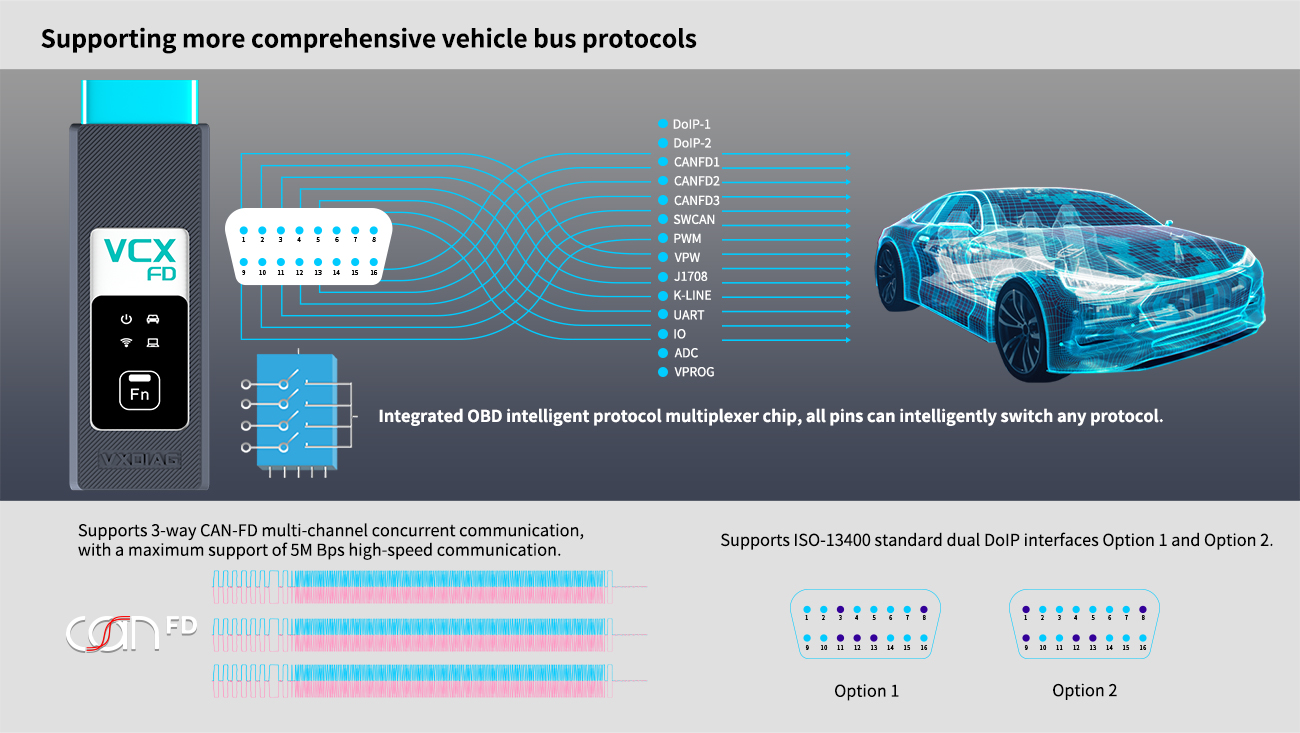

Supported vehicle bus protocols
- ISO-9141 K-Line
- ISO-15765 CAN
- ISO-11898-2 CAN
- ISO-11898-3 FTCAN
- SAE-J2411 SWCAN (GMLAN)
- ISO-9141 K-Line
- ISO-14230 K-Line
- ISO-17987 LIN BUS
- SAE-J1850-PWM (FORD SCP)
- SAE-J1850-VPW (GM Class2)
- SAE-J2740 GM ALDL
- VAG TP20 CAN (SAE-J2819)
- VAG TP16 CAN
- VAG KW81 (SAE J2818)
- SAE-J2610 SCI (Chrysler)
- SAE-J1567 CCD BUS (Chrysler)
- SAE-J2809 HONDA DIAG-H
- NISSAN DDL UART with CLOCK
- BMW DS2
- FORD UBP
- BENZ KWFB
- BENZ MB-ISO

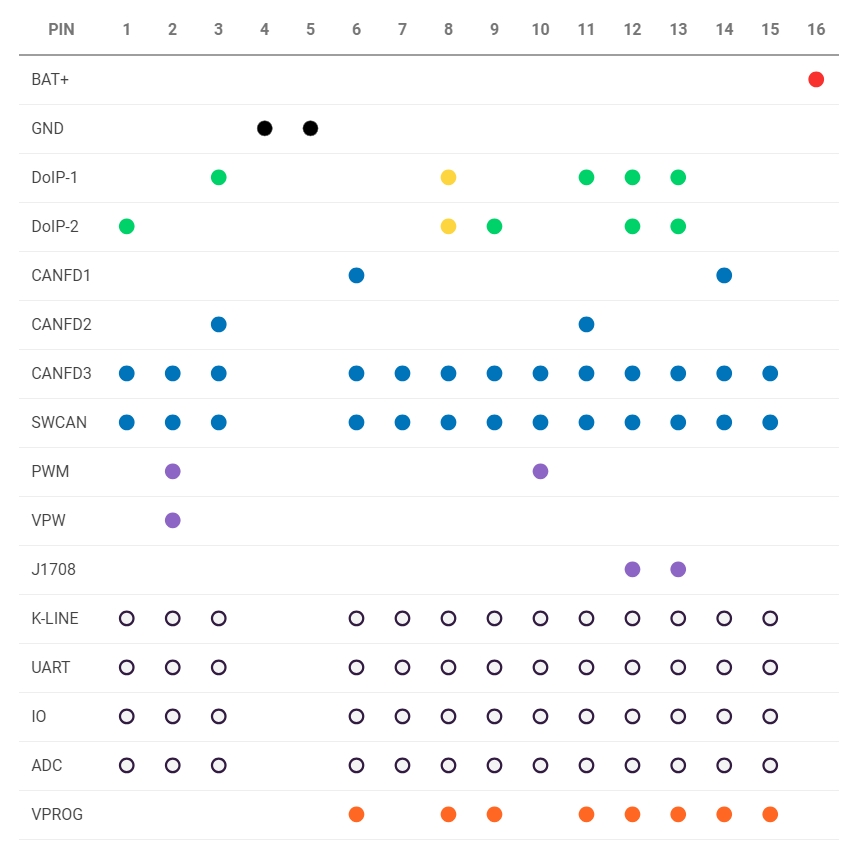

Bus protocols coverage of OBD-II pins
Product accessories
Device of VCX FD
138 x 47 x 21 (mm)

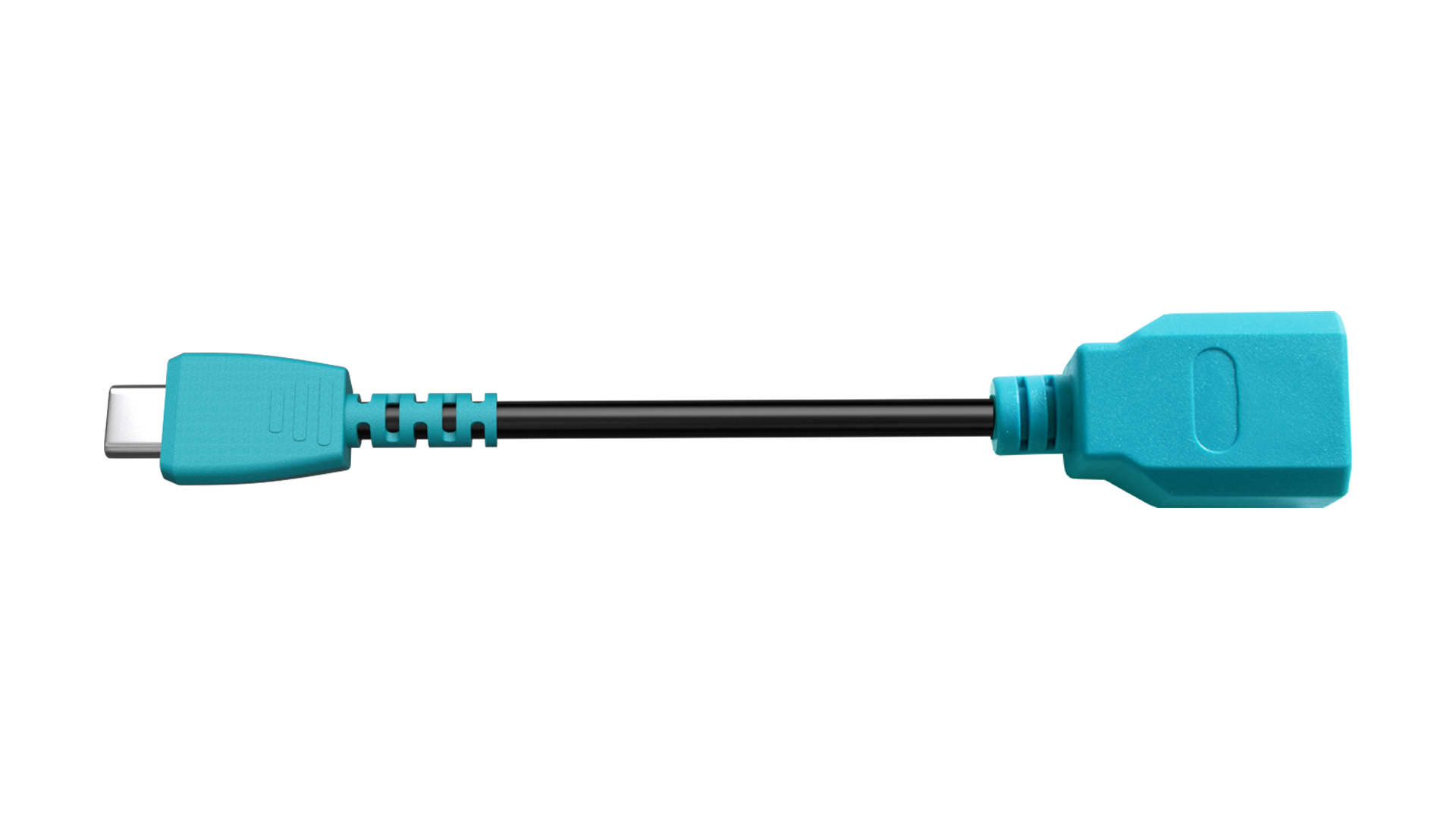

RJ45 Cable
USB-C to RJ45 , 0.2m

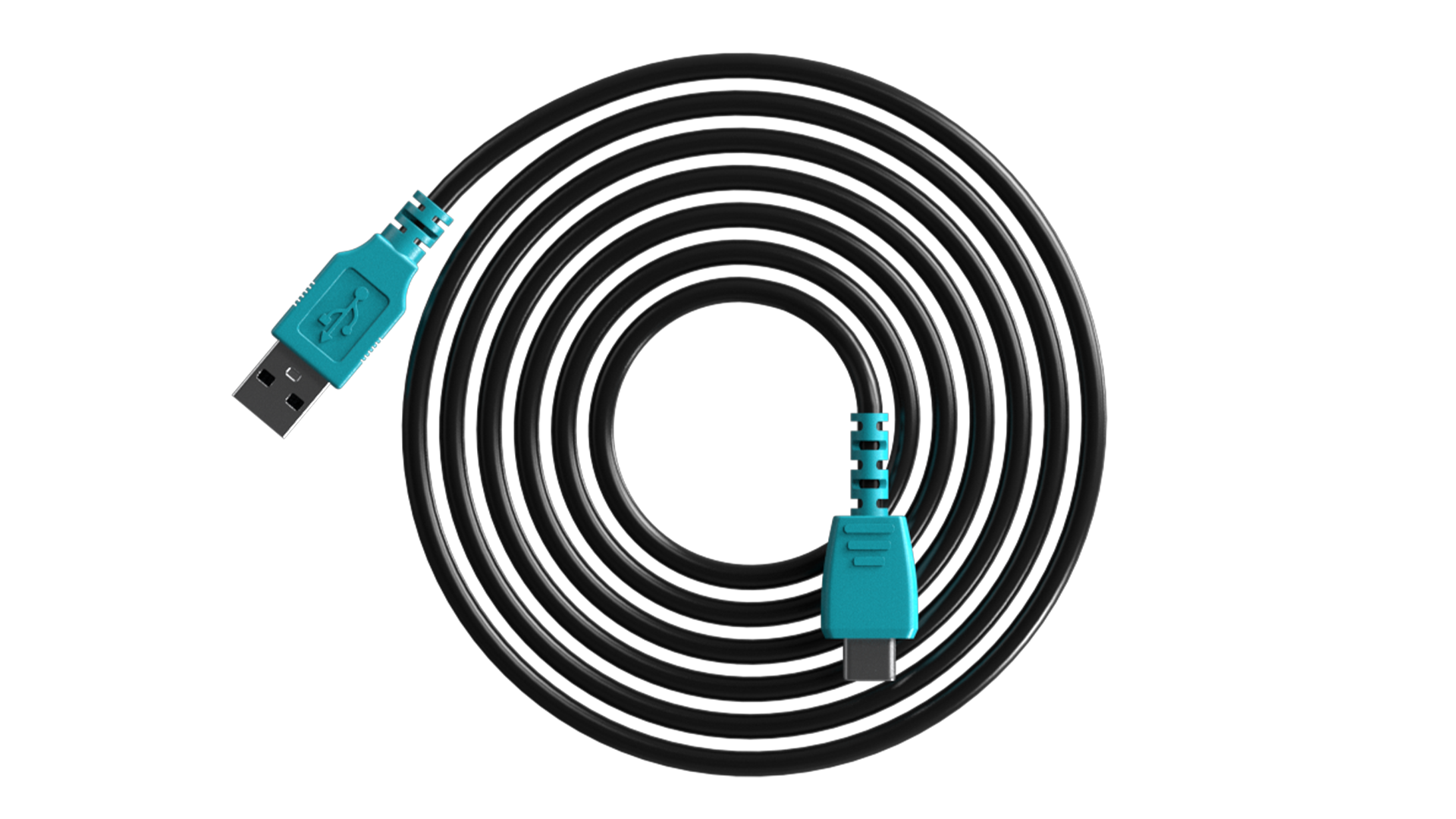

USB-C Cable
USB-C to USB-A，2m
Packing box
175 x 130 x 45 (mm)
Which VCX is right for you?
VCX FD
- Dual processor 580MHz + 550MHz
- Support option 1/2
- Support CAN FD
- 802.11n 150Mbps
- USB Type-C
- Type C to RJ45
- OBD-II
- Software switchable protocol for all pins of OBD
- Remote support
- compatible with 17 vehicle brands
VCX DoIP
- Dual processor 580MHz + 180MHz
- Support option 1/2
- CAN FD is not support
- 802.11n 150Mbps
- USB Type-B Interface
- RJ45 Interface
- DB-26 to OBD-II
- Software switchable protocol for all pins of OBD
- Remote support
- compatible with 17 vehicle brands
VCX SE
- Dual processor 580MHz + 180MHz
- Support option1
- CAN FD is not support
- 802.11n 150Mbps
- USB Type-C Interface
- Type-C to RJ45
- OBD-II
- Software switchable protocol for all pins of OBD
- Remote support
- compatible with 17 vehicle brands
VCX Nano
- Single processor 180MHz
- Not support
- CAN FD is not support
- 802.11n 75Mbps
- USB Micro Interface
- Network interface is not supported
- OBD-II
- Non switchable (pin fixed)
- Remote is not supported
- compatible with 8 vehicle brands (Single Function)
